CH series groove mixer, mainly composed by the cell body and agitator, bracket, flip part, transmission part and electrical components.
CH series groove mixer, mainly composed by the cell body and agitator, bracket, flip part, transmission part and electrical components.
+86 13921209007
director@wtgrinderline.com

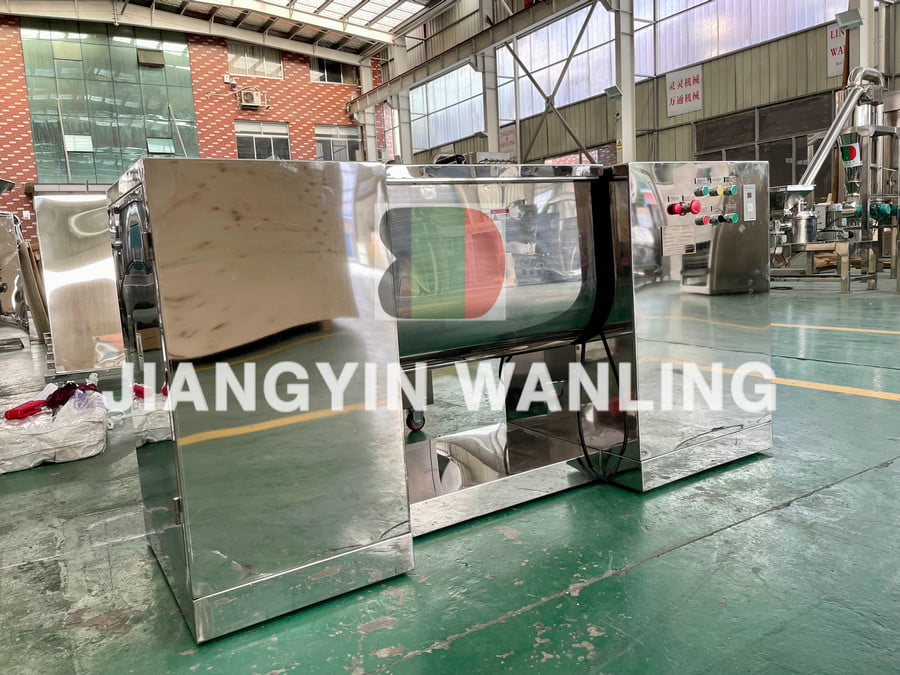

The whole CH single tank mixer machine is made of stainless stain, its horizontal type mixer. It’s widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.
|
Type |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Paddle shape |
S-style single paddle |
|||||||
|
Working volume(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Mixing speed(r/min) |
24 |
|||||||
|
Flip angle |
<105° |
|||||||
|
Mixing power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
|
Pouring motor power(kw) |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Overall size(mm) |
1200×500×950 |
1400×580×1000 |
1800×600×1150 |
2000×650×1200 |
2200×700×1250 |
2280×750×1250 |
2350×800×1300 |
2400×850×1350 |
|
Weight(kg) |
280 |
350 |
410 |
450 |
520 |
580 |
|
|
![]() |
![]() |
![]() |
