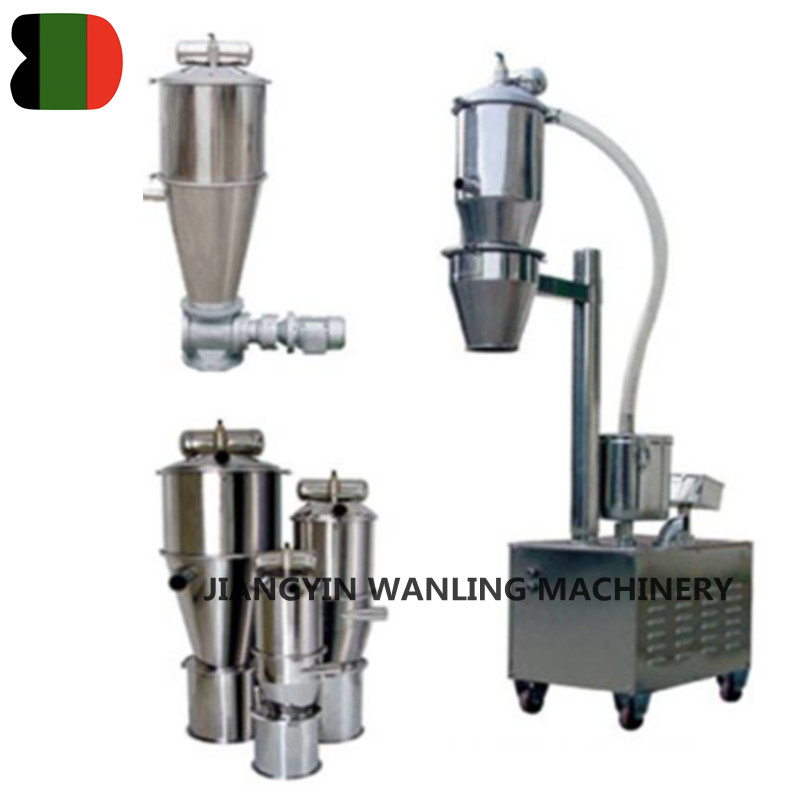

The ZKS stainless steel vacuum conveyor is a stainless steel vacuum conveyor designed for hygienic handling of food powders.
The ZKS stainless steel vacuum conveyor is a stainless steel vacuum conveyor designed for hygienic handling of food powders.
+86 13921209007
director@wtgrinderline.com
The stainless steel vacuum feeder is equipped with a compressed air backflushing device. Each time the material is discharged, the compressed air pulse backflushs the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction.
|
Model |
Power(kw) |
Feeding capacity(kg/h) |
|
ZKS-1 |
1.5 |
400 |
|
ZKS-2 |
2.2 |
600 |
|
ZKS-3 |
3 |
1200 |
|
ZKS-4 |
5.5 |
2500 |
|
ZKS-6 |
5.5 |
3200 |
|
ZKS-7 |
7.5 |
6000 |
|
ZKS-10-6 |
7.5 |
6000(Conveying distance 10 meters) |
|
ZKS-20-5 |
11 |
5000(Conveying distance 20 meters) |
![]() |
![]() |
![]() |
