The 1000kg ribbon mixer is a horizontal type mixing machine,it have many models, the biggest one volume is 15000L, so this mixer machine can be used in industry.
The 1000kg ribbon mixer is a horizontal type mixing machine,it have many models, the biggest one volume is 15000L, so this mixer machine can be used in industry.
+86 13921209007
director@wtgrinderline.com

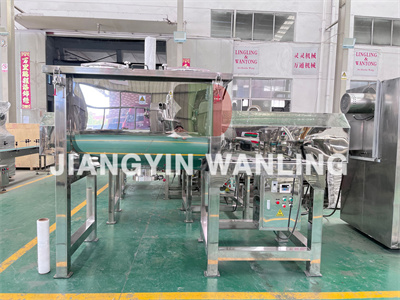

This ribbon mixer machine is made of stainless steel. The box is made of thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.
|
Model |
All Volume |
Load efficiency |
Power(kw) |
Overall size(mm) |
weight(kg) |
|
WLLD-200 |
200L |
0.4-0.8 |
3 |
1190x740x770 |
330 |
|
WLLD-300 |
300L |
4 |
2030x630x980 |
720 |
|
|
WLLD-500 |
500L |
7.5 |
2320×730×1130 |
980 |
|
|
WLLD-1000 |
1000L |
11 |
2800×920×1320 |
1700 |
|
|
WLLD-1500 |
1500L |
11 |
3180×1020×1550 |
1800 |
|
|
WLLD-2000 |
2000L |
15 |
3310×1120×1640 |
2100 |
|
|
WLLD-3000 |
3000L |
18.5 |
3750×1290×1820 |
3000 |
|
|
WLLD-4000 |
4000L |
22 |
4220×1400×1990 |
3980 |
|
|
WLLD-5000 |
5000L |
22 |
4220×1500×1990 |
4620 |
|
|
WLLD-6000 |
6000L |
30 |
4700×1610×2260 |
6180 |
|
|
WLLD-8000 |
8000L |
37 |
4420×2150×2470 |
8200 |
|
|
WLLD-10000 |
10000L |
45 |
5520×2960×2720 |
8920 |
|
|
WLLD-12000 |
12000L |
45 |
5720×3010×2840 |
9520 |
|
|
WLLD-15000 |
15000L |
|
55 |
5840×3540×2940 |
9950 |
