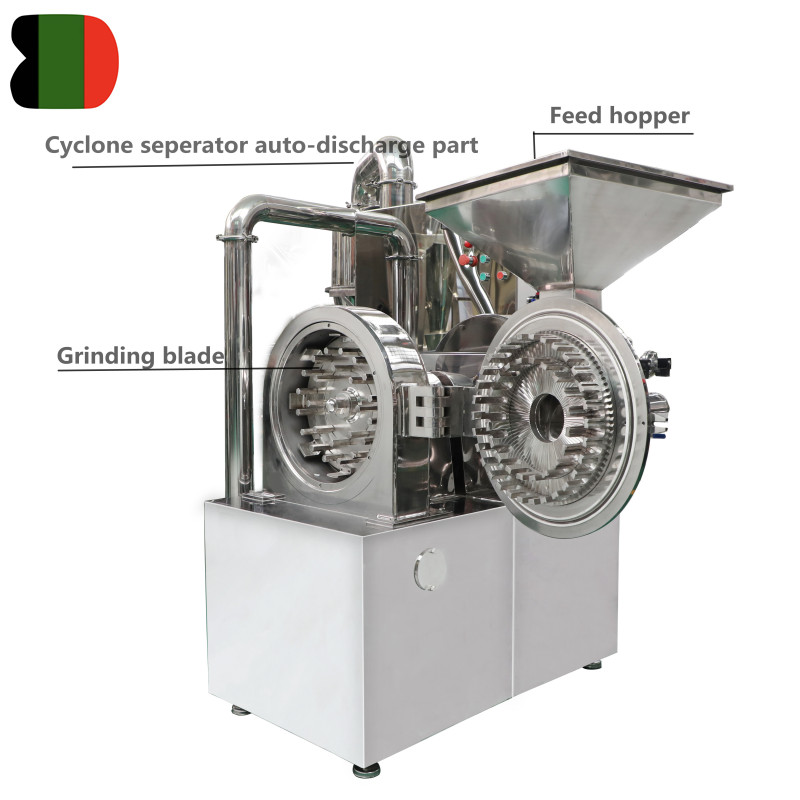

While the WLF machine excels at processing corn into fine grits or flour, its capabilities extend far beyond a single grain. This powerhouse is designed to pulverize a wide range of low-hardness materials across various industries
While the WLF machine excels at processing corn into fine grits or flour, its capabilities extend far beyond a single grain. This powerhouse is designed to pulverize a wide range of low-hardness materials across various industries
+86 13921209007
director@wtgrinderline.com
The WLF machine isn't just versatile; it delivers good performance:
High Production Capacity: Grind large volumes of material quickly, maximizing your output.
Superior Fineness: Adjustable grinding between 20-120 mesh ensures you achieve the exact particle size you require.
Low Noise Operation: Maintain a quieter work environment for increased comfort and safety.
|
Type |
20B |
30B |
40B |
50B |
60B |
|
Capacity(kg/h) |
20-80 |
50-300 |
100-400 |
300-500 |
300-500 |
|
Main speed(r/min) |
4500 |
3500 |
3400 |
2900 |
2900 |
|
Feed size(mm) |
6 |
10 |
12 |
12 |
12 |
|
Discharge size(mesh) |
20-150 |
20-150 |
20-150 |
20-150 |
20-150 |
|
Crush power(kw) |
4 |
5.5 |
7.5 |
11 |
22 |
|
Fan power(kw) |
2.2 |
2.2 |
2.2 |
3 |
3 |
|
Discharge motor(kw) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Weight(kg) |
350 |
500 |
600 |
750 |
750 |
|
Overall dimensions(mm) |
1000*800*1600 |
1200*850*1780 |
1480*900*1890 |
1580*1000*2000 |
1800*1200*2200 |
