The nuts coating machine is specially used to coating pills and tablets in the lines of pharmacy,foodstuff and chemicals,as well as for the roll-making,and polishing of the granules materials by foodstuff chemical industries etc.
The nuts coating machine is specially used to coating pills and tablets in the lines of pharmacy,foodstuff and chemicals,as well as for the roll-making,and polishing of the granules materials by foodstuff chemical industries etc.
+86 13921209007
director@wtgrinderline.com

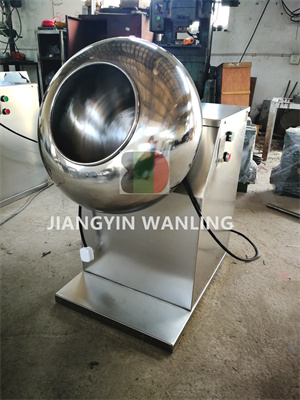

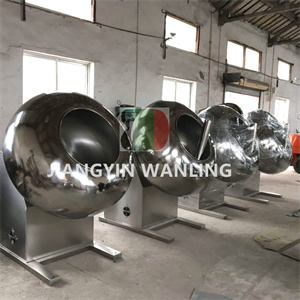

This nuts coating machine is driven by a motor through V-belt worm, driven by sugar-coating pan rotates, centrifugal force, so that the material in the pot internal friction for rolling up and down, to mix the sugar coating, pelleting and lighting effects.
|
Model |
Capacity(kg/batch) |
Coat pan diameter |
Rotate speed |
Motor power |
Fan power |
Heat power(kw) |
Hot air temp. |
Overall Size(mm) |
Weight(kg) |
|
BTJ-400 |
5-20 |
400 mm |
35 r/min |
0.55 kw |
0.04 kw |
1.2 |
50~60℃ |
550*500*850 |
70 |
|
BTJ-600 |
20-40 |
600 mm |
35 r/min |
0.75 kw |
0.37 kw |
2 |
750*700*1100 |
150 |
|
|
BTJ-800 |
40-60 |
800 mm |
35 r/min |
1.1 kw |
0.37 kw |
3 |
900*900*1400 |
180 |
|
|
BTJ-1000 |
60-80 |
1000 mm |
28 r/min |
1.1 kw |
0.37 kw |
3 |
1100*1100*1600 |
200 |
